Product Name: Y-shaped Thread (Hand Palm) Series
XXX-Y type wire 2/3/4/5 cores, one out three
JR-XXX-Y02003
JR-XXX-Y03003
JR-XXX-Y04003
JR-XXX-Y05003
Product Parameters:
contact resistance
Contact resistance: ＜ 10m Ω
insulation resistance
Insulation resistance: ≥ 10M Ω at DC500V
withstand voltage
Voltage endurance: AC500V, 1min, leakage current<2mA
operating temperature range
Working temperature range: -45 ℃ -105 ℃
rated current
Rated current: 10A
canning material
Shell material: Nylon PA66
IP67
UL94V-0 fire rating
Industrial connector

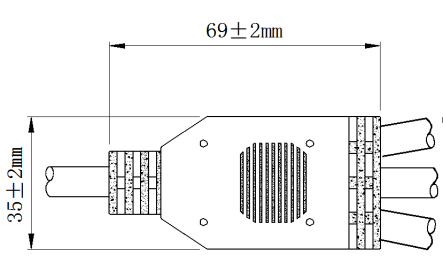

Product dimensions:

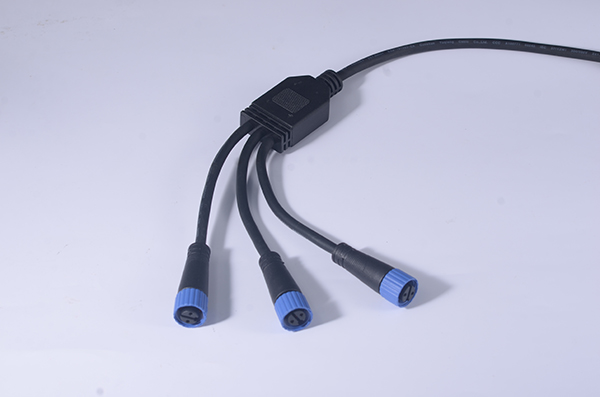

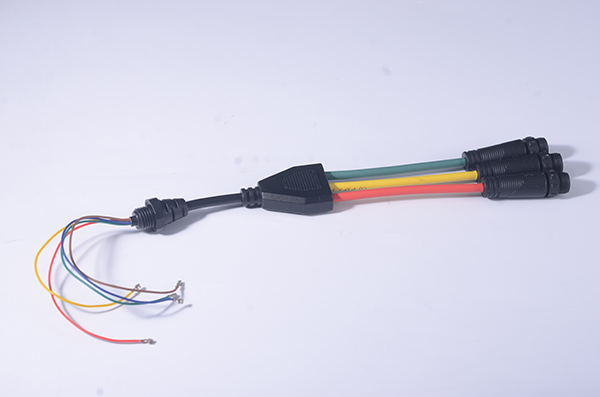

Product appearance:

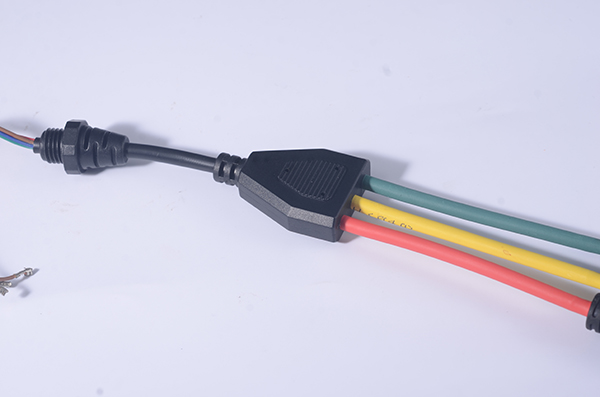

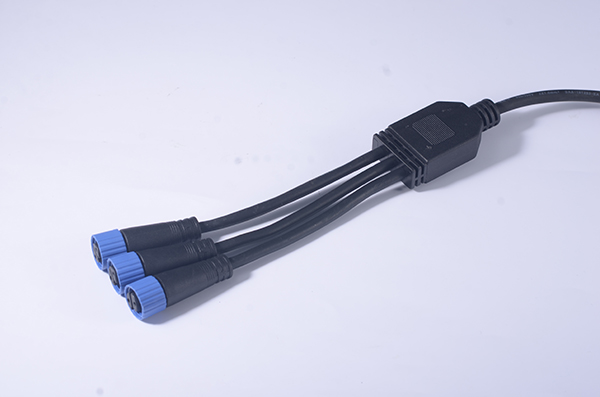

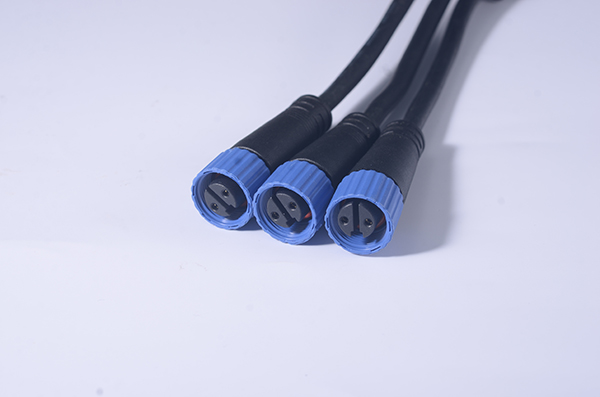

Product details of Y-shaped line:
