Product Parameters:
contact resistance
Contact resistance: ＜ 10m Ω
insulation resistance
Insulation resistance: ≥ 10M Ω at DC500V
withstand voltage
Voltage endurance: AC500V, 1min, leakage current<2mA
operating temperature range
Working temperature range: -45 ℃ -105 ℃
rated current
Rated current: 10A
Plug the numbe
Insertion and unplugging times: ≥ 1000 times
canning material
Shell material: Nylon PA66
Contact piece (pin jack)
Contact (pin socket): brass gold-plated
IP67
UL94V-0 fire rating
Product dimensions:
Product hole position front view:

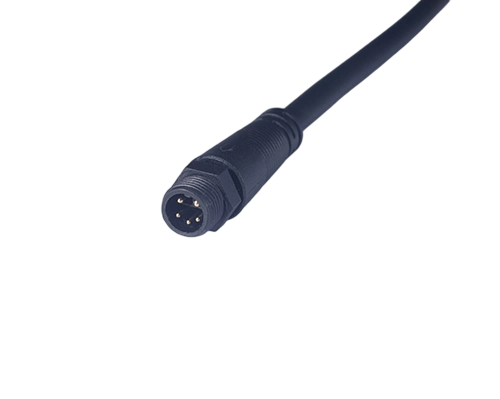

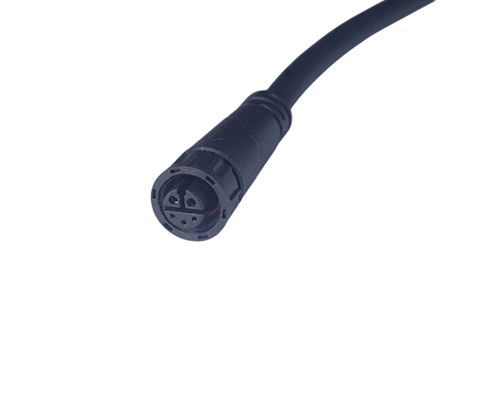

M12 connectorProduct Details:
